KeyCloak

KeyCloak is "an open source identity and access management solution." Using a local database, or a variety of backends (think OpenLDAP), you can provide Single Sign-On (SSO) using OpenID, OAuth 2.0, and SAML.

!!! important Development of this recipe is sponsored by The Common Observatory. Thanks guys!

[![Common Observatory](../images/common_observatory.png)](https://www.observe.global/)

Ingredients

Docker swarm cluster with persistent shared storage
Traefik configured per design
DNS entry for the hostname (i.e. "keycloak.your-domain.com") you intend to use for LDAP Account Manager, pointed to your keepalived IP

Preparation

Setup data locations

We'll need several directories to bind-mount into our container for both runtime and backup data, so create them as follows

mkdir -p /var/data/runtime/keycloak/database
mkdir -p /var/data/keycloak/database-dump

Prepare environment

Create /var/data/keycloak/keycloak.env, and populate with the following variables, customized for your own domain structure.

# Technically, this could be auto-detected, but we prefer to be prescriptive
DB_VENDOR=postgres
DB_DATABASE=keycloak
DB_ADDR=keycloak-db
DB_USER=keycloak
DB_PASSWORD=myuberpassword
KEYCLOAK_USER=admin
KEYCLOAK_PASSWORD=ilovepasswords

# This is required to run keycloak behind traefik
PROXY_ADDRESS_FORWARDING=true

# What's our hostname?
KEYCLOAK_HOSTNAME=keycloak.batcave.com

# Tell Postgress what user/password to create
POSTGRES_USER=keycloak
POSTGRES_PASSWORD=myuberpassword

Create /var/data/keycloak/keycloak-backup.env, and populate with the following, so that your database can be backed up to the filesystem, daily:

PGHOST=keycloak-db
PGUSER=keycloak
PGPASSWORD=myuberpassword
BACKUP_NUM_KEEP=7
BACKUP_FREQUENCY=1d

Setup Docker Swarm

Create a docker swarm config file in docker-compose syntax (v3), something like this:

!!! tip I share (with my patreon patrons) a private "premix" git repository, which includes necessary docker-compose and env files for all published recipes. This means that patrons can launch any recipe with just a git pull and a docker stack deploy 👍

version: '3'

services:
  keycloak:
    image: jboss/keycloak
    env_file: /var/data/config/keycloak/keycloak.env
    volumes:
      - /etc/localtime:/etc/localtime:ro
    networks:
      - traefik_public
      - internal
    deploy:
      labels:
        - traefik.frontend.rule=Host:keycloak.batcave.com
        - traefik.port=8080
        - traefik.docker.network=traefik_public

  keycloak-db:
    env_file: /var/data/config/keycloak/keycloak.env
    image: postgres:10.1
    volumes:
      - /var/data/runtime/keycloak/database:/var/lib/postgresql/data
      - /etc/localtime:/etc/localtime:ro
    networks:
      - internal

  keycloak-db-backup:
    image: postgres:10.1
    env_file: /var/data/config/keycloak/keycloak-backup.env
    volumes:
      - /var/data/keycloak/database-dump:/dump
      - /etc/localtime:/etc/localtime:ro
    entrypoint: |
      bash -c 'bash -s <<EOF
      trap "break;exit" SIGHUP SIGINT SIGTERM
      sleep 2m
      while /bin/true; do
        pg_dump -Fc > /dump/dump_\`date +%d-%m-%Y"_"%H_%M_%S\`.psql
        (ls -t /dump/dump*.psql|head -n $$BACKUP_NUM_KEEP;ls /dump/dump*.psql)|sort|uniq -u|xargs rm -- {}
        sleep $$BACKUP_FREQUENCY
      done
      EOF'
    networks:
      - internal

networks:
  traefik_public:
    external: true
  internal:
    driver: overlay
    ipam:
      config:
        - subnet: 172.16.49.0/24

!!! note Setup unique static subnets for every stack you deploy. This avoids IP/gateway conflicts which can otherwise occur when you're creating/removing stacks a lot. See my list here.

Serving

Launch KeyCloak stack

Launch the KeyCloak stack by running docker stack deploy keycloak -c <path -to-docker-compose.yml>

Log into your new instance at https://YOUR-FQDN, and login with the user/password you defined in keycloak.env.

Integrating into OpenLDAP

KeyCloak gets really sexy when you integrate it into your OpenLDAP stack (also, it's great not to have to play with ugly LDAP tree UIs).

You'll need to have completed the OpenLDAP recipe

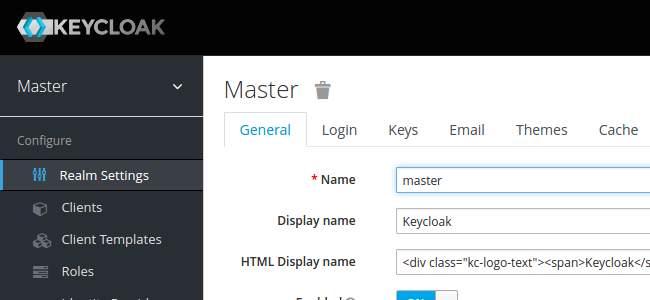

You start in the "Master" realm - but mouseover the realm name, to a dropdown box allowing you add an new realm:

Enter a name for your new realm, and click "Create":

Once in the desired realm, click on User Federation, and click Add Provider. On the next page ("Required Settings"), set the following:

Edit Mode : Writeable
Vendor : Other
Connection URL : ldap://openldap
Users DN : ou=People,<your base DN>
Authentication Type : simple
Bind DN : cn=admin,<your base DN>
Bind Credential : <your chosen admin password>

Save your changes, and then navigate back to "User Federation" > Your LDAP name > Mappers:

For each of the following mappers, click the name, and set the "Read Only" flag to "Off" (this enables 2-way sync between KeyCloak and OpenLDAP)

last name
username
email
first name
