geek-cookbook/manuscript/recipes/nightscout.md

description

description
CGM data with an API, for diabetic quality-of-life improvements

Nightscout

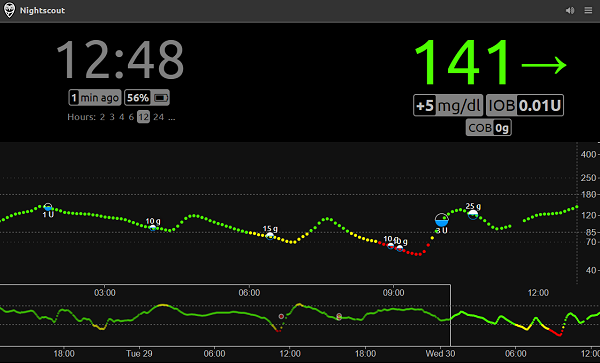

Nightscout is "...an open source, DIY project that allows real time access to a CGM data via personal website, smartwatch viewers, or apps and widgets available for smartphones"

!!! question "Yeah, but what's a CGM?" A CGM is a "continuos glucose monitor" 🩸 - If you have a blood-sugar-related disease (i.e. diabetes), you might wear a CGM in order to retrieve blood-glucose level readings, to inform your treatment.

NightScout frees you from the CGM's supplier's limited and proprietary app, and unlocks advanced charting, alarming, and sharing features :muscle:

Nightscout is the standard for open-source CGM data collection, used by diabetics and those who love them, to store, share, and retrieve blood-glocuse data, in order to live healthier and happier lives. It's used as the data sharing/syncing backend for all the popular smartphone apps, including xDrip+ (Android) and Spike App (iOS).

Most NightScout users will deploy to Heroko, using MongoDB Atlas, which is a well-documented solution. If you wanted to run NightScout on your own Docker stack though, then this recipe is for you!

--8<-- "recipe-standard-ingredients.md"

Preparation

Setup data locations

First we create a directory to hold Nightscout's database, as well as database backups:

mkdir -p /var/data/runtime/nightscout/database  # excluded from automated backups
mkdir -p /var/data/nightscout/database          # included in automated backups

Create env file

NightScout is configured entirely using environment variables, so create something like this as /var/data/config/nightscout/nightscout.env:

!!! warning Your variables may vary significantly from what's illustrated below, and it's best to read up and understand exactly what each option does.

# Customize these per https://github.com/nightscout/cgm-remote-monitor/blob/master/README.md#environment

# Required
MONGODB_URI=mongodb://db
API_SECRET=myverysecritsecrit
DISPLAY_UNITS=mmol # set to "mg/dl" if you're using US-style measurements
BASE_URL=https://nightscout.example.com

# We rely on traefik to handle SSL, so don't bother using in in nightscout
INSECURE_USE_HTTP=true

# Listen on all interfaces
HOSTNAME=::

# # Features
ENABLE=careportal basal dbsize rawbg iob maker bridge cob bwp cage iage sage boluscalc pushover treatmentnotify mmconnect loop pump profile food openaps bage alexa override cors
# DISABLE=
AUTH_DEFAULT_ROLES=denied
THEME=colors

# IMPORT_CONFIG=
# TREATMENTS_AUTH=

# # Alarms
# ALARM_TYPES=
# BG_HIGH
# BG_TARGET_TOP
# BG_TARGET_BOTTOM
# BG_LOW
# ALARM_URGENT_HIGH
# ALARM_URGENT_HIGH_MINS
# ALARM_HIGH
# ALARM_HIGH_MINS
# ALARM_LOW
# ALARM_LOW_MINS
# ALARM_URGENT_LOW
# ALARM_URGENT_LOW_MINS
# ALARM_URGENT_MINS
# ALARM_WARN_MINS

# # Core
# MONGO_TREATMENTS_COLLECTION=treatments

# Mongodb specific database dump details
BACKUP_NUM_KEEP=7
BACKUP_FREQUENCY=1d

Setup Docker Swarm

Create a docker swarm config file in docker-compose syntax (v3), something like this:

--8<-- "premix-cta.md"

!!! tip I'm keen to share any and all resources I have with diabetics or loved-ones of diabetics (of which I am one). Contact me directly for details!

version: '3.2'

services:

  app:
    image: nightscout/cgm-remote-monitor
    networks:
      - internal
      - traefik_public
    env_file: /var/data/config/nightscout/nightscout.env
    deploy:
      labels:
        # traefik
        - traefik.enable=true
        - traefik.docker.network=traefik_public

        # traefikv1
        - traefik.frontend.rule=Host:nightscout.example.com
        - traefik.port=1337

        # traefikv2
        - "traefik.http.routers.nightscout.rule=Host(`nightscout.example.com`)"
        - "traefik.http.routers.nightscout.entrypoints=https"
        - "traefik.http.services.nightscout.loadbalancer.server.port=1337"

  db:
    image: mongo:latest
    networks:
      - internal
    volumes:
      - /var/data/runtime/nightscout/database:/data/db

  db-backup:
    image: mongo:latest
    env_file: /var/data/config/nightscout/nightscout.env
    volumes:
      - /var/data/nightscout/database-dump:/dump
    entrypoint: |
      bash -c 'bash -s <<EOF
      trap "break;exit" SIGHUP SIGINT SIGTERM
      sleep 2m
      while /bin/true; do
        mongodump -h db --gzip --archive=/dump/dump_\`date +%d-%m-%Y"_"%H_%M_%S\`.mongo.gz
        ls -tr /dump/dump_*.mongo.gz | head -n -"$$BACKUP_NUM_KEEP" | xargs -r rm
        sleep $$BACKUP_FREQUENCY
      done
      EOF'
    networks:
      - internal

networks:
  traefik_public:
    external: true
  internal:
    driver: overlay
    ipam:
      config:
        - subnet: 172.16.4.0/24

Serving

Launch nightscout!

Launch the nightscout stack by running docker stack deploy nightscout -c <path -to-docker-compose.yml>

--8<-- "recipe-footer.md"
