Portainer

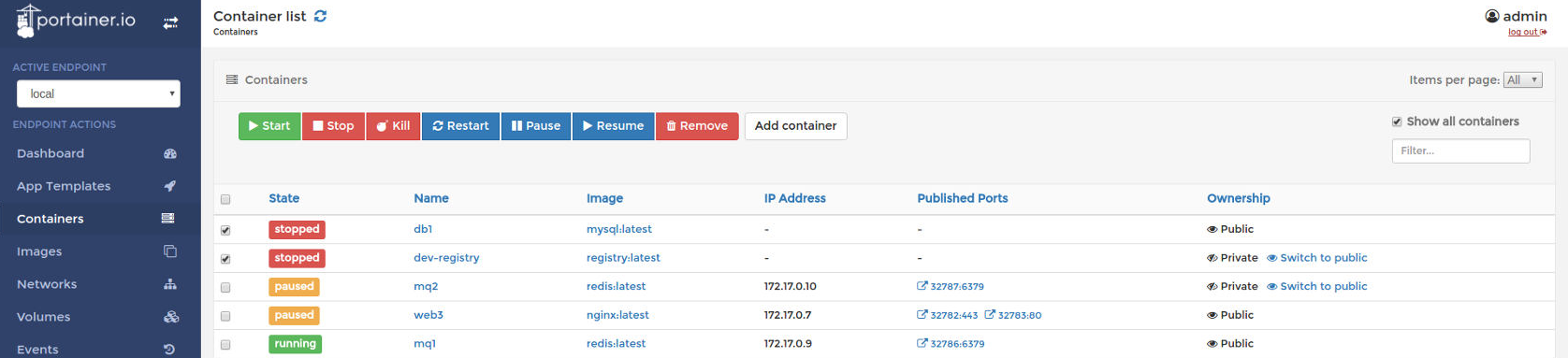

Portainer is a lightweight sexy UI for visualizing your docker environment. It also happens to integrate well with Docker Swarm clusters, which makes it a great fit for our stack.

Ingredients

Docker swarm cluster with persistent shared storage
Traefik configured per design
DNS entry for the hostname you intend to use, pointed to your keepalived IP

Preparation

Setup data locations

Create a folder to store portainer's persistent data:

mkdir /var/data/portainer

Setup Docker Swarm

Create a docker swarm config file in docker-compose syntax (v3), something like this:

--8<-- "premix-cta.md"

version: "3"

services:
  portainer:
    image: portainer/portainer-ce
    env_file: /var/data/config/portainer/portainer.env
    volumes:
      - /var/data/portainer:/data
    networks:
      - traefik_public
      - internal
    deploy:
      replicas: 1
      labels:
        # traefik
        - traefik.enable=true
        - traefik.docker.network=traefik_public

        # traefikv1
        - traefik.frontend.rule=Host:portainer.example.com
        - traefik.port=9000
        # uncomment if you want to protect portainer with traefik-forward-auth using traefikv1
        # - traefik.frontend.auth.forward.address=http://traefik-forward-auth:4181
        # - traefik.frontend.auth.forward.authResponseHeaders=X-Forwarded-User
        # - traefik.frontend.auth.forward.trustForwardHeader=true

        # traefikv2
        - "traefik.http.routers.portainer.rule=Host(`portainer.example.com`)"
        - "traefik.http.routers.portainer.entrypoints=https"
        - "traefik.http.services.portainer.loadbalancer.server.port=9000"
        # uncomment if you want to protect portainer with traefik-forward-auth using traefikv2
        # - "traefik.http.routers.portainer.middlewares=forward-auth"
      placement:
        constraints: [node.role == manager]
    command: -H "tcp://tasks.portainer_agent:9001" --tlsskipverify

  agent:
    image: portainer/agent
    environment:
      AGENT_CLUSTER_ADDR: tasks.portainer_agent
      CAP_HOST_MANAGEMENT: 1
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - /var/lib/docker/volumes:/var/lib/docker/volumes
    ports:
      - target: 9001
        published: 9001
        protocol: tcp
        mode: host
    networks:
      - internal
    deploy:
      mode: global
      placement:
        constraints: [node.platform.os == linux]

networks:
  traefik_public:
    external: true

Serving

Launch Portainer stack

Launch the Portainer stack by running docker stack deploy portainer -c <path -to-docker-compose.yml>

Log into your new instance at https://YOUR-FQDN. You'll be prompted to set your admin user/password.
